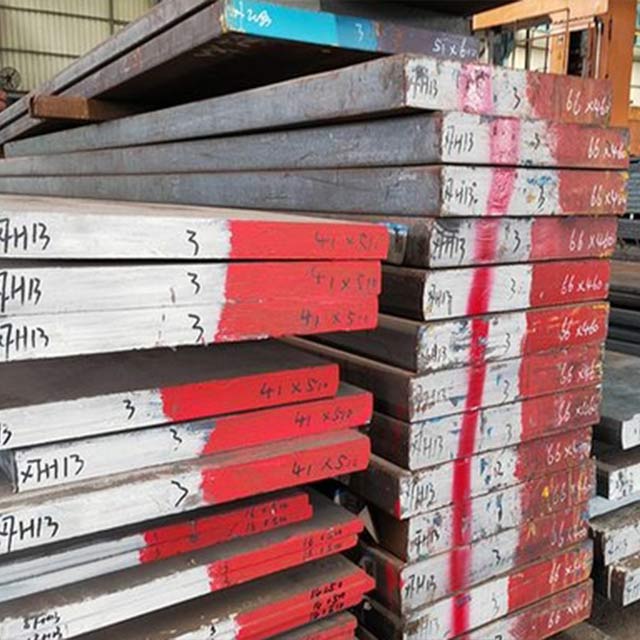

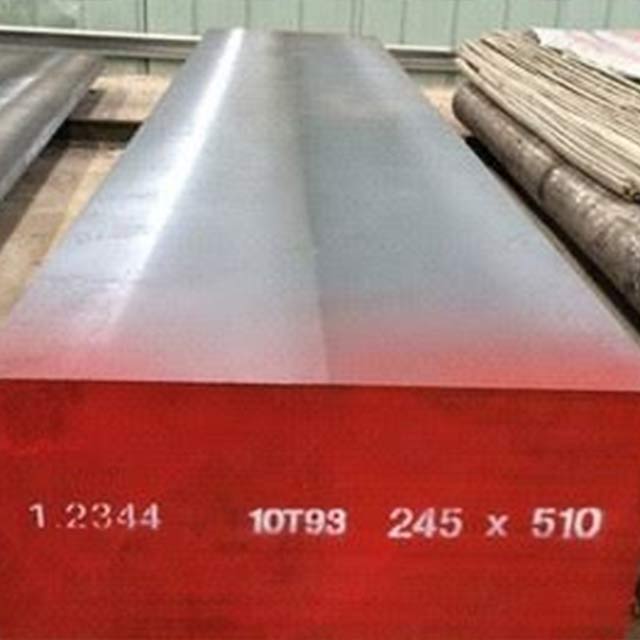

AISI H13 Hot Work Tool Steel plate
xxheise
AISI H13 hot work tool steel plate complies with ASTM A681 standard, equivalent to 4Cr5MoSiV1, SKD61 and DIN 1.2344. This chromium-molybdenum-vanadium tool steel delivers outstanding thermal fatigue resistance, high-temperature strength, good toughness and polishability after quenching and tempering. Supplied in annealed condition for easy machining, it is widely adopted for aluminum alloy die-casting dies, hot extrusion dies, hot forging moulds and high-load plastic injection moulds. Full mill test certificate is provided for each shipment.
WhatsApp ：8613052238878
Email ：elena@shengxisteel.com

- PRODUCT PARAMETERS -

Product Information Table


Item

Details

Product name

AISI H13 Hot Work Tool Steel Plate

Material

AISI H13, 4Cr5MoSiV1, SKD61, DIN 1.2344

Standard

ASTM A681, AISI H13

Type

Chromium-molybdenum-vanadium hot work tool steel

Product form

Hot-rolled plate, forged plate, ESR refined plate

Application

Aluminum zinc alloy die-casting dies, hot forging dies, hot extrusion dies, hot shear blades, high-polish injection molds

Explanation

H13 plate is popular hot-work mold steel. ESR refined grade offers cleaner internal structure for long-life mold service. Delivered in annealed state for machining before customer heat treatment.


Chemical Composition (wt.%)


Carbon C

Silicon Si

Manganese Mn

Chromium Cr

Molybdenum Mo

Vanadium V

Phosphorus P

Sulfur S

0.32~0.45

0.80~1.20

0.20~0.50

4.75~5.50

1.10~1.75

0.80~1.20

≤0.030

≤0.030


Mechanical Properties


Condition

Diameter (mm)

Hardness


Explanation

Annealed (as-supplied)

≤300

HB

≤235

Spheroidized annealed, machinable

Quenched & Tempered

≤150

HRC

48~54

After proper heat treatment



Product Selling Points


H13 hot-work tool steel plate with chromium-molybdenum-vanadium alloy composition, exhibits outstanding hot hardness and thermal-fatigue resistance under cyclic high-temperature working conditions.

Excellent heat-shock resistance and good tempering stability, resists thermal cracking during repeated hot-forging, die-casting and hot-extrusion production cycles.

Fine homogeneous microstructure, good hardenability, delivers balanced strength, toughness and wear resistance after heat treatment, suitable for heavy-duty hot-working mold base and cavity inserts.

Good machinability in annealed state, supports laser cutting, water-jet cutting and custom blank processing, helps customers shorten mold-making cycle.

Strict metallurgical quality control, ESR-remelted high-cleanliness grade optional, full mill test certificates available, widely applied for aluminum die-casting molds, hot forging dies and hot extrusion tooling.

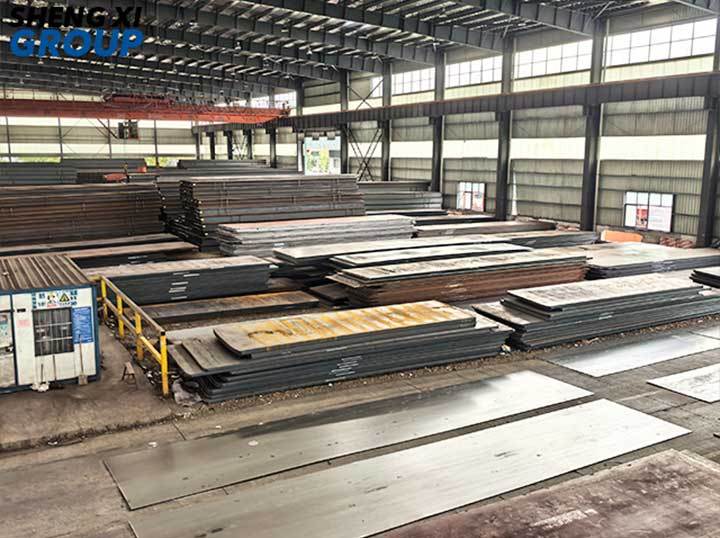

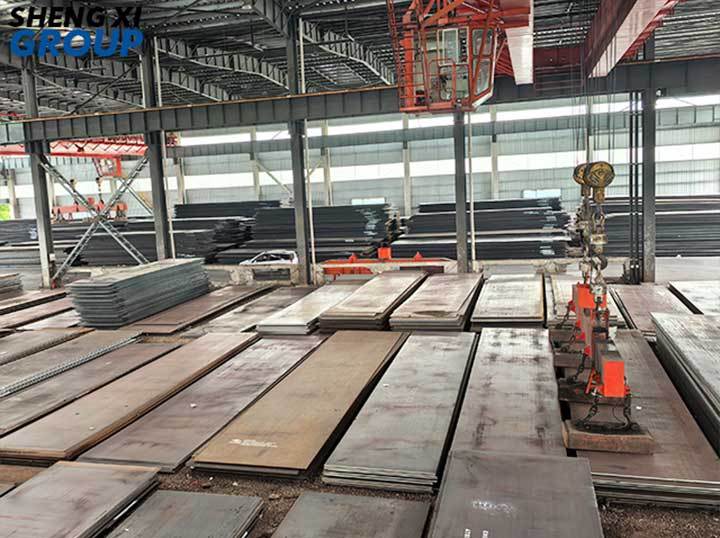

- FACTORY DISPLAY -

1787276355949239596318003200.jpg@!w400



1787276356949239597416902656.jpg@!w400





We have our own independent factory which can provide one-stop service for steel cutting, forming and surface treatment. The factory has a strict quality inspection system and various precision testing instruments, and has passed all the third party quality tests such as SGS, BV and CE.

  • zs1
  • zs2

【 OUR CERTIFICATIONS 】

- CUSTOMER VISITS -

We are listed as a high-quality supplier by many overseas customers andforeign trade companies.

  • khbf1
  • khbf2
  • khbf3
  • khbf4

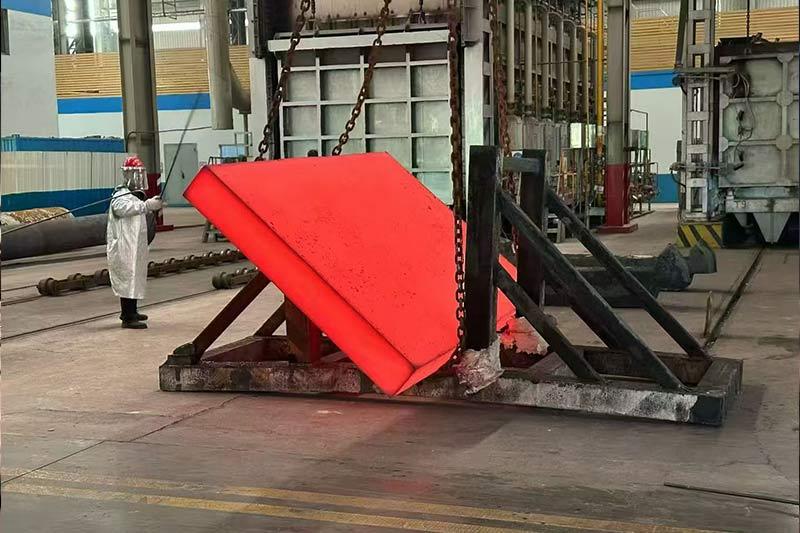

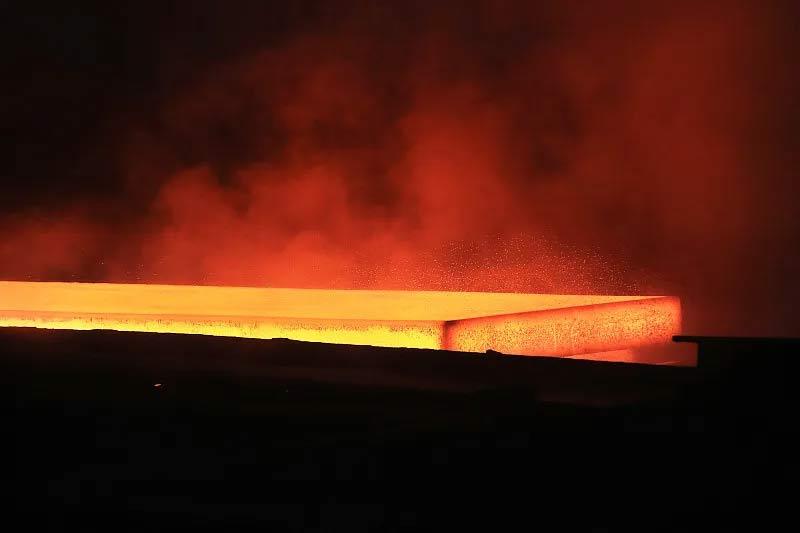

- PRODUCTION AND PROCESSING -

1787276379949239697283289088.jpg@!w400



1787276380949239698306691072.jpg@!w400

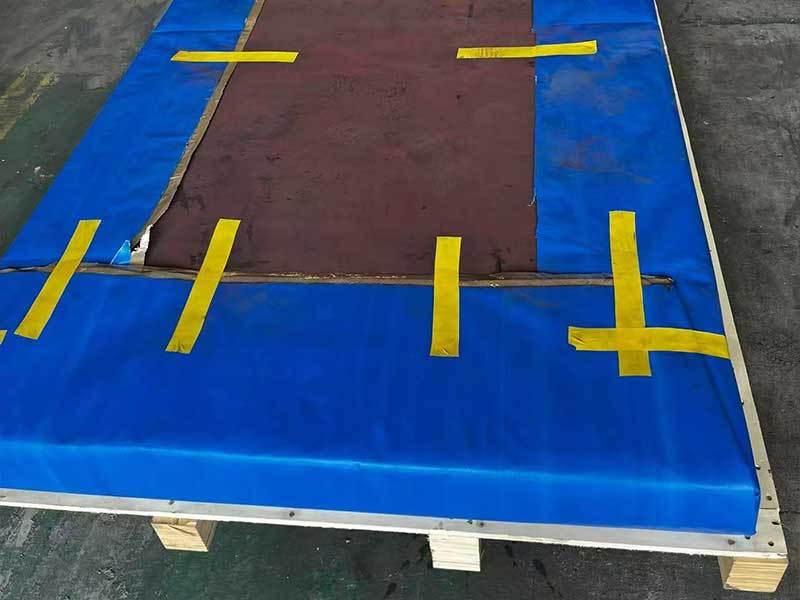

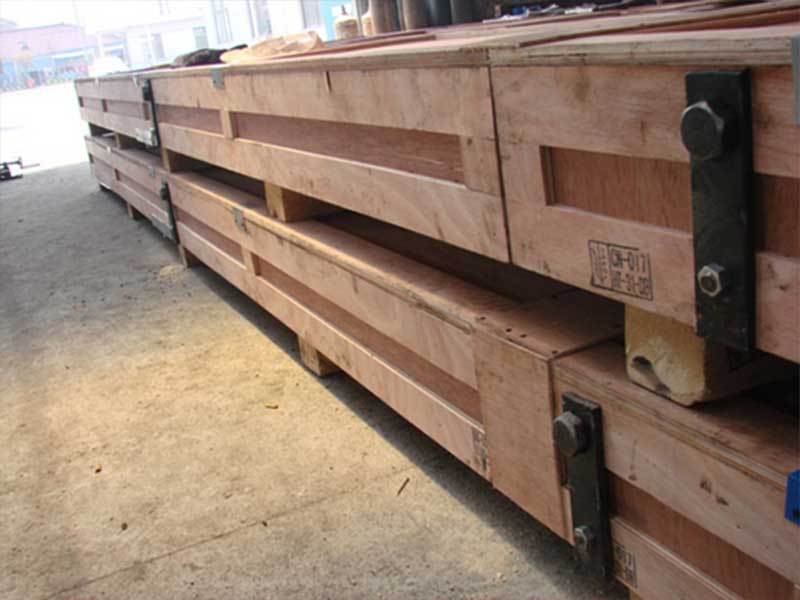

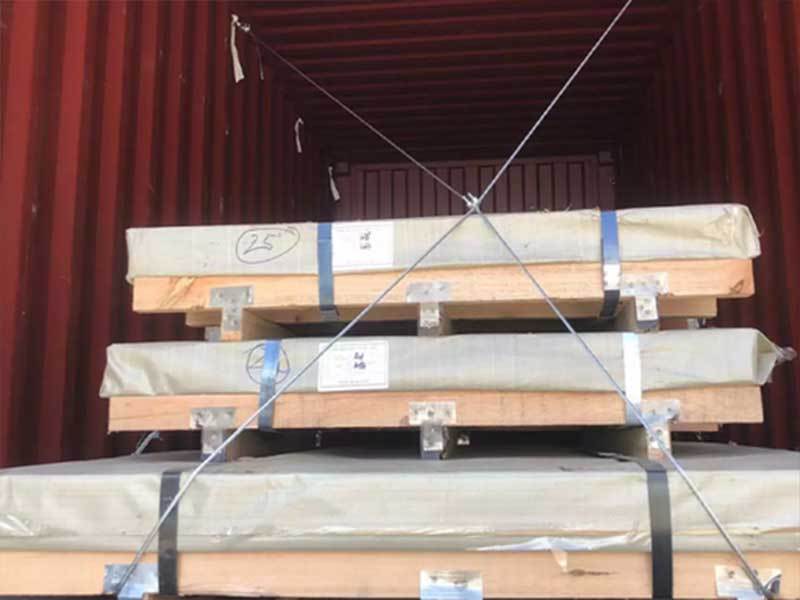

- PACKING & DELIVERY -

1787276409949239819807297536.jpg@!w400



1787276409949239820860059648.jpg@!w400



1787276409949239821891858432.jpg@!w400




- FAQ -

Q1. What is H13 hot work tool steel plate

H13 plate is chromium-molybdenum-vanadium hot work tool steel mainly used for high-temperature mould manufacturing. It features excellent thermal-crack resistance and keeps stable mechanical performance under repeated heating-cooling cycles.

Q2. What equivalent grades and standards apply to H13 steel plate

Our H13 steel plate follows ASTM A681 standard. Equivalent grades are GB 4Cr5MoSiV1, JIS SKD61 and DIN 1.2344. Mill test certificate covering chemical composition and mechanical properties is available for every batch.

Q3. What thickness and processing options can you supply

We provide H13 plates with thickness ranging from 10 mm to 200 mm. Hot-rolled, forged and ESR refined plates are available. Saw cutting and custom size processing services are supported upon customer requestMade-in-Ch....

Q4. What are the main typical applications for H13 tool steel plate

H13 plate is mostly used for aluminium and zinc alloy die-casting dies, hot forging dies, hot extrusion dies, hot shear blades and high-requirement plastic injection moulds needing good polishing performance.

Q5. What is the delivery hardness and target hardness after heat treatment

As-delivered annealed H13 plate hardness is ≤235 HB for machining. After proper quenching and tempering treatment, the target working hardness reaches 48-54 HRC with balanced toughness and heat-fatigue performance.
